Upper Air UV System | Zone180 Series
Zone180 – Patent Pending
Zone180 Series Specifications
| Application | Upper Air UV System |
| Power | AC 120V |
| Wiring | Direct wired or plugged in |
| Switch | On/Off standard (can be wired to wall switch for easy on/off) |
| Safety | Louvers to collimate UV-C rays away from room below |
| Ozone | None |
| Warranty | 5-year for unit, 1-year for fan, 1-year for UV-C lamp |
| Lamp Hours | 9,000 (1 year for 24/7 operation) |
| Replacement Lamp | To reorder, call us at (866) 994-2473 |
Zone180–16
| Room Size | Up to 250 sq. ft. |
| Device | 8" H x 6" W x 16" L |
| Weight | 13 lbs. |
| Fan | 105 cfm (1 fan) |
Zone180–24
| Room Size | Up to 400 sq. ft. |
| Device | 8" H x 6" W x 24" L |
| Weight | 18 lbs. |
| Fan | 210 cfm (2 fans) |
Zone180 Series Specifications
| APPLICATION: Upper Air UV System |
| POWER: AC 120V |
| WIRING: Direct wired or plugged in |
| SWITCH: On/Off standard (can be wired to wall switch for easy on/off) |
| SAFETY: Louvers to collimate UV-C rays away from room below |
| OZONE: None |
| WARRANTY: 5-year for unit, 1-year for fan, 1-year for UV-C lamp |
| LAMP HOURS: 9,000 (1 year for 24/7 operation) |
| REPLACEMENT LAMP: To reorder, call us at (866) 994-2473 |
Zone180-16
| ROOM SIZE: Up to 250 sq. ft. |
| DEVICE: 8" H x 6" W x 16" L |
| WEIGHT: 13 lbs. |
| FAN: 105 cfm (1 fan) |
Zone180-24
| ROOM SIZE: Up to 400 sq. ft. |
| DEVICE: 8" H x 6" W x 24" L |
| WEIGHT: 18 lbs. |
| FAN: 210 cfm (2 fans) |

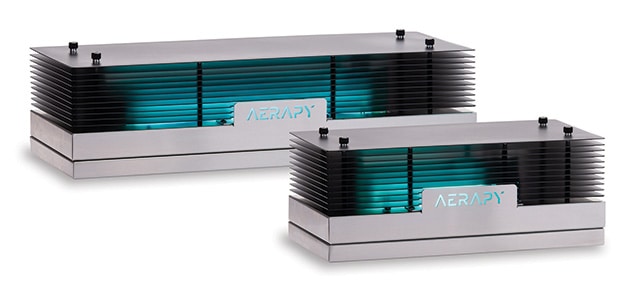

Zone180 Series Description
The Zone180 Series (Zone180-16 and Zone180-24) offers targeted, high-level UV disinfection for smaller indoor spaces, including those with no HVAC in place.
The Zone180 is designed for spaces with less square footage than those suitable for our popular Zone360 upper air unit. The compact, upper room units are easily wall-mounted to provide continual air disinfection. The Zone180-16 is designed for rooms less than 250 sq. ft. and features one integrated fan to create powerful airflow, while the Zone180-24 can take on rooms up to 400 sq. ft. with two fans.
This upper air UV equipment also helps reduce pathogens that settle out of the air and onto surfaces. For example, if a larger pathogen aerosolizes for 20 seconds to 5 minutes and then falls out of the air, it contributes to surface disease transmission. These upper air UV solutions can help reduce both the air pathogen load and, in combination with normal surface cleaning procedures, help further reduce the surface pathogen load.
